Product Overview

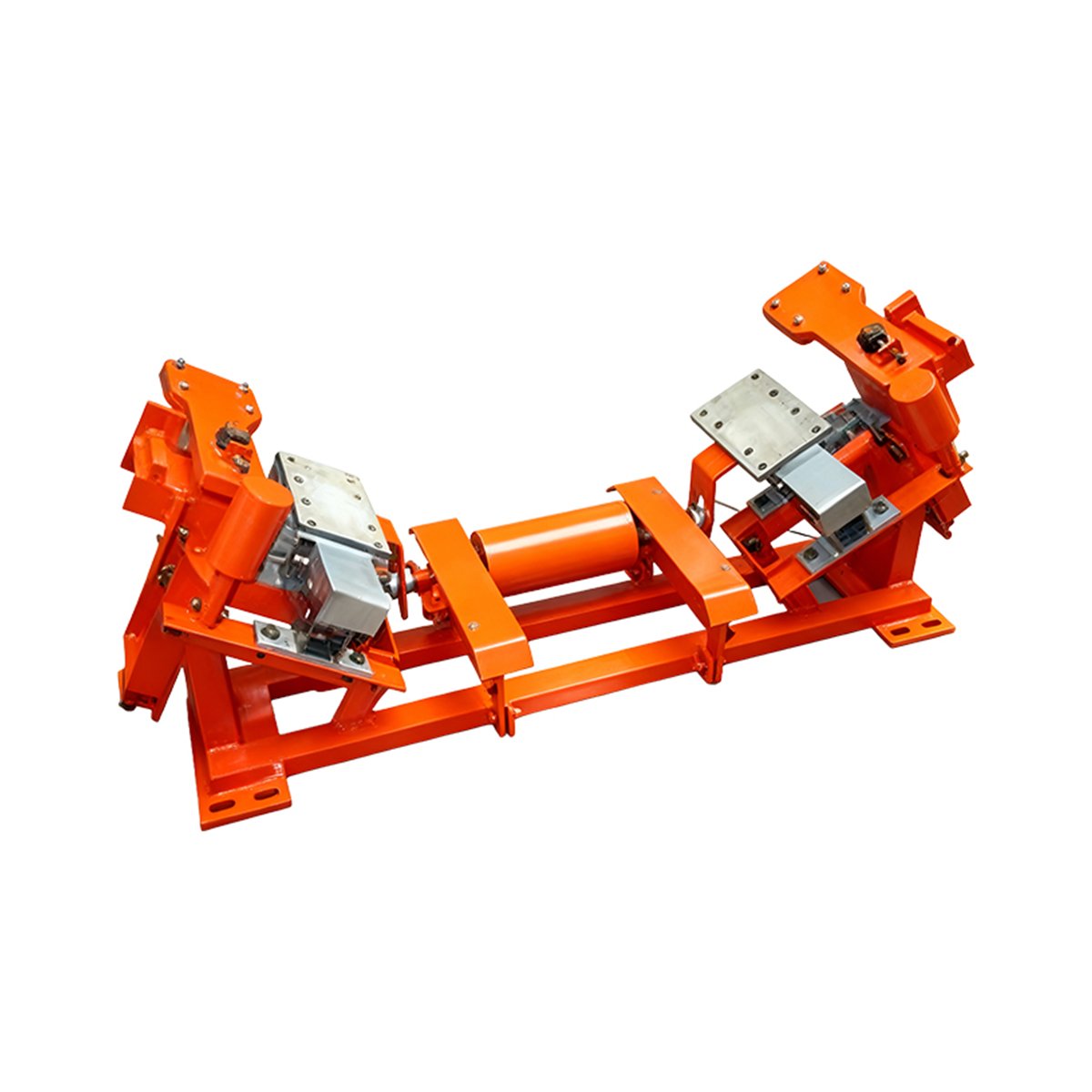

The Broken Belt Arrestor (belt catcher / anti-drop device) is an emergency safety assembly installed on downhill, high-incline or high-lift belts: if the belt fractures, slips or runs away, its dual wedge jaws clamp both sides of the belt and lock it to the frame, stopping the loaded belt from running back and dropping material onto the return run or structure. A welded steel bolt-down base, optional zero-speed/speed switch for automatic triggering and heavy wedge clamping make it a fail-safe last line of protection where a belt failure would otherwise cause a serious runaway or falling-belt hazard on mining, port, power plant and inclined conveyors. Supplied to your belt width (500–2000mm), belt speed and duty zone for bolt-down installation on existing frames.
Key Features
Type
Mechanical broken-belt arrestor (belt catcher / anti-drop device)
Function
Clamps and holds the belt if a fracture or runaway slip occurs
Belt Width
500–2000mm on request
Sensors
Speed / zero-speed switch option for automatic trigger
Frame
Welded steel base with bolt-down mounting holes
Clamping
Dual wedge jaws on both sides of the belt
Application
Downhill conveyors, high-lift belts, inclined and vertical lifts
Applications
- Downhill and high-incline conveyors where a broken belt can run back
- Vertical and high-lift bucket/elevator-type belt systems
- Mining, port and power plant emergency belt protection
How to Choose This Component
- Grade and load: choose CEMA E for extra-heavy, high-tonnage and overland duty; CEMA D for heavy-duty mainstream sections. Size the roller diameter and bracket spacing to the expected impact, belt load and material flow.
- Belt width: match the part to your belt (BW 500–2000mm). When requesting a quote, send belt width, required trough angle or drum diameter, and installation spacing so we can confirm a drop-in fit.
- Working environment: tell us whether the duty is wet, dusty, sticky, abrasive or high-drop so we can match the seal, lagging, material and surface finish.
- Retrofit and mounting: provide existing bracket spacing and frame type for a direct replacement; painted or galvanized finishes are both available.
Why Source These Spare Parts From Us
- Built to CEMA D/E and ISO alignment standards for interchangeability with existing frames.
- Direct factory supply with no middleman markup; OEM and private-label orders accepted.
- Custom dimensions, lagging, seals, shafts and finish built to your specification.
- Seaworthy timber or carton export packing; shipped to 60+ countries by sea, air and express freight.
- Engineer support on selection and a written quote within 48 hours.
Frequently Asked Questions
What build grade and rating is the Broken Belt Arrestor / Belt Catcher?
Broken Belt Arrestor / Belt Catcher is supplied at Mechanical broken-belt arrestor (belt catcher / anti-drop device). It is engineered to match CEMA D/E and ISO expectations for BW 500–2000mm belt duty and can be customized to your dimensions, lagging and finish.
What belt widths does the Broken Belt Arrestor / Belt Catcher cover?
This component is sized for BW 500–2000mm. Send your exact belt width, required angle or diameter and installation spacing when requesting a quote so we can confirm a direct, drop-in fit.
How is the Broken Belt Arrestor / Belt Catcher sealed against dust and water?
Protection follows sealed, labyrinth-protected construction. Labyrinth-style sealing keeps grease in and fines, moisture and wash-down out, extending service life in harsh bulk-handling conditions.
Can I order a custom Broken Belt Arrestor / Belt Catcher?
Yes. Dimensions, lagging or coating, seal, shaft and finish are built to your specification; standard lead time is 15–25 working days and 30–45 days for fully custom builds.
Ordering & Customization
- MOQ: trial and sample orders welcome; volume improves pricing
- Lead time: 15–25 working days standard; 30–45 days for custom build
- Custom: size, lagging, seal, shaft and finish built to your specification
- Export packing: seaworthy timber or carton packing for long sea transit
