CEMA E Rubber Disc Return Idler

Product Overview

The CEMA E Rubber Disc Return Idler carries spaced rubber discs larger than the shell with open gaps between them, so sticky coal, clay and overburden peel off as the roller turns rather than building into a lumpy, unbalanced drum. This self-cleaning action keeps the return belt flat and reduces carry-back to the tail pulley on 36–96 inch mining and wet-application spans. The discs cushion the belt while the steel core and sealed bearings maintain CEMA E load capacity.

Key Features

CEMA Grade

E (Extra Heavy-Duty)

Type

Rubber-disc self-cleaning return

Roller Diameter

5" & 6" (Ø127–150mm)

Belt Width

36"–96" (900–2400mm)

Feature

Discs larger than shell, gaps between

Mount

U drop brackets

Applications

Coal, clay and overburden return-side cleaning
Sticky material carry-back control
Mining and wet-application return spans

How to Choose This Component

Grade and load: choose CEMA E for extra-heavy, high-tonnage and overland duty; CEMA D for heavy-duty mainstream sections. Size the roller diameter and bracket spacing to the expected impact, belt load and material flow.
Belt width: match the part to your belt (BW 36"–96"). When requesting a quote, send belt width, required trough angle or drum diameter, and installation spacing so we can confirm a drop-in fit.
Working environment: tell us whether the duty is wet, dusty, sticky, abrasive or high-drop so we can match the seal, lagging, material and surface finish.
Retrofit and mounting: provide existing bracket spacing and frame type for a direct replacement; painted or galvanized finishes are both available.

Why Source These Spare Parts From Us

Built to CEMA D/E and ISO alignment standards for interchangeability with existing frames.
Direct factory supply with no middleman markup; OEM and private-label orders accepted.
Custom dimensions, lagging, seals, shafts and finish built to your specification.
Seaworthy timber or carton export packing; shipped to 60+ countries by sea, air and express freight.
Engineer support on selection and a written quote within 48 hours.

Frequently Asked Questions

What build grade and rating is the CEMA E Rubber Disc Return Idler?

CEMA E Rubber Disc Return Idler is supplied at E (Extra Heavy-Duty). It is engineered to match CEMA D/E and ISO expectations for BW 36"–96" belt duty and can be customized to your dimensions, lagging and finish.

What belt widths does the CEMA E Rubber Disc Return Idler cover?

This component is sized for BW 36"–96". Send your exact belt width, required angle or diameter and installation spacing when requesting a quote so we can confirm a direct, drop-in fit.

How is the CEMA E Rubber Disc Return Idler sealed against dust and water?

Protection follows sealed, labyrinth-protected construction. Labyrinth-style sealing keeps grease in and fines, moisture and wash-down out, extending service life in harsh bulk-handling conditions.

Can I order a custom CEMA E Rubber Disc Return Idler?

Yes. Dimensions, lagging or coating, seal, shaft and finish are built to your specification; standard lead time is 15–25 working days and 30–45 days for fully custom builds.

Ordering & Customization

MOQ: trial and sample orders welcome; volume improves pricing
Lead time: 15–25 working days standard; 30–45 days for custom build
Custom: size, lagging, seal, shaft and finish built to your specification
Export packing: seaworthy timber or carton packing for long sea transit

Typically Paired With

Components commonly ordered alongside this part to complete the station:

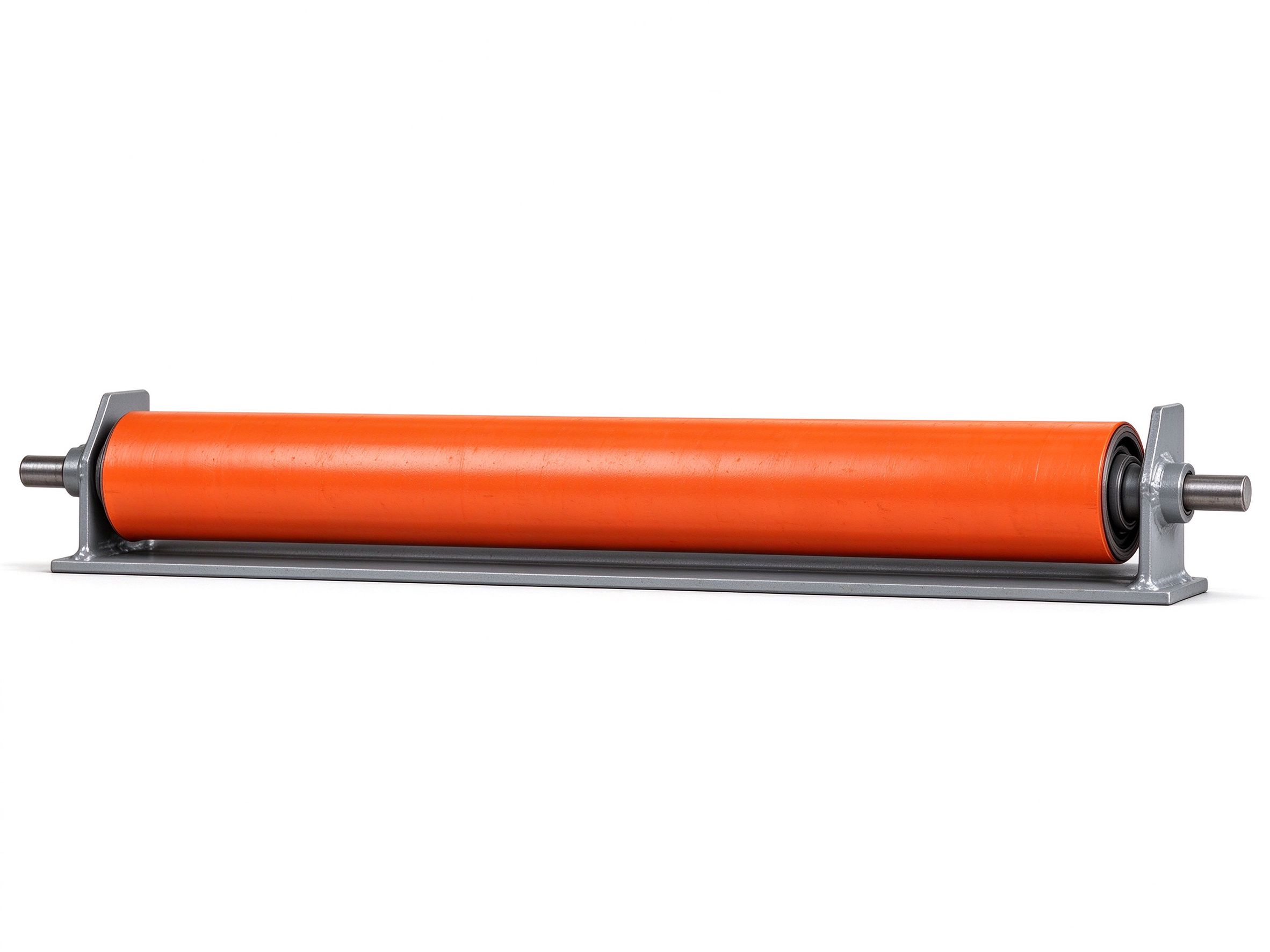

CEMA E Flat Return Idler CEMA D V-Return Idler CEMA D Flat Idler (Single Roller)
