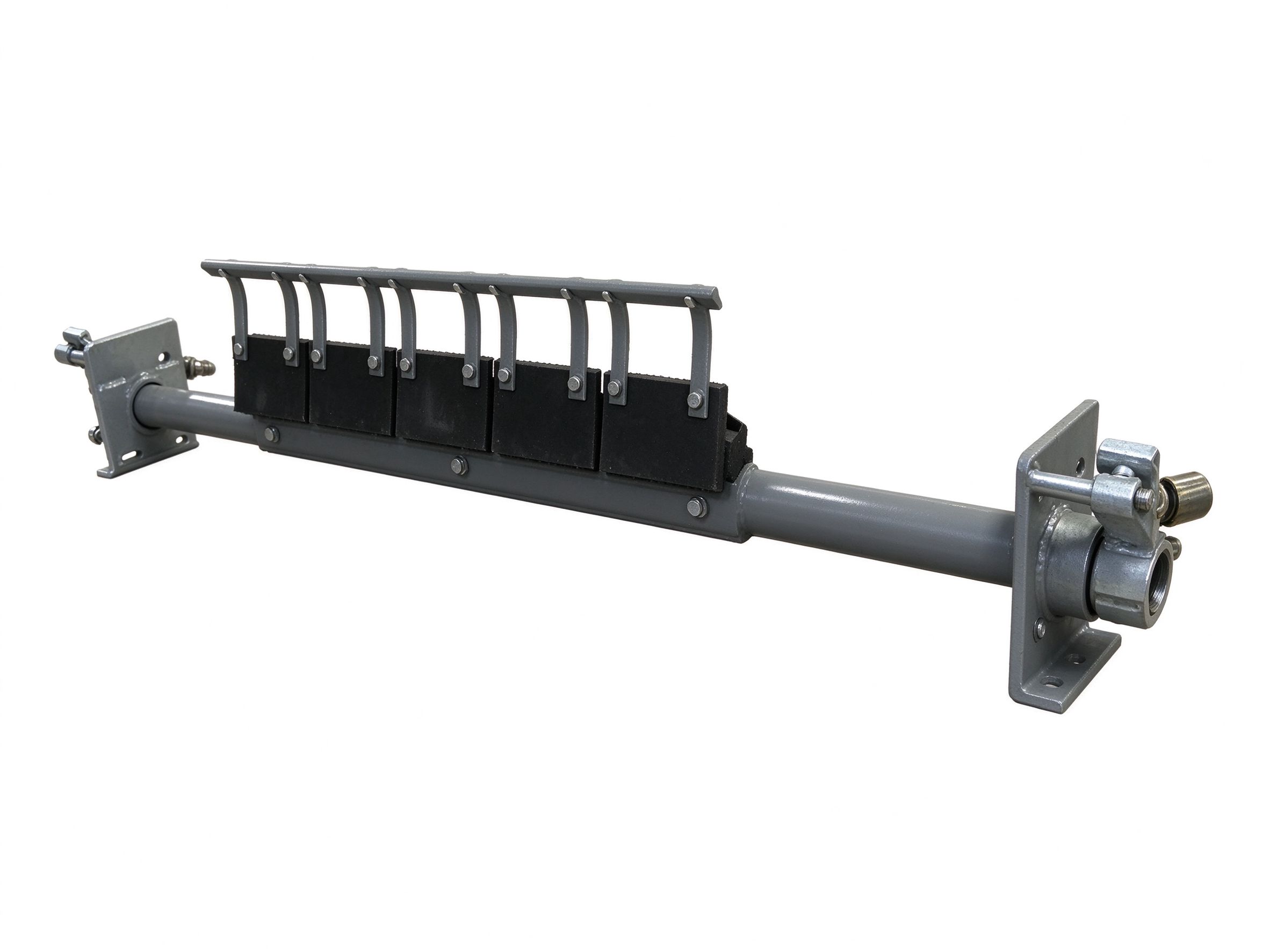

Secondary Belt Cleaner (Tungsten Tip)

Product Overview

The Secondary Belt Cleaner (Tungsten Tip) sits after the primary and polishes the belt down to fine residue that the PU blade leaves behind. Tungsten-carbide tipped segments remove film and sticky fines on 24–96 inch mining and cement discharge belts, cutting fugitive dust on the return run and protecting downstream return idlers and pulleys. Stationary mounting and replaceable tips make it a maintenance-friendly complement to a primary cleaner.

Key Features

Grade

D (Heavy-Duty)

Type

Secondary belt cleaner

Blade

Tungsten-carbide tipped segments

Mount

Stationary, after primary

Belt Width

24"–96" (600–2400mm)

Action

Polishes belt, removes fine residue

Applications

Fine residue removal after primary cleaner
Fugitive dust reduction on return run
Mining and cement plant discharge

How to Choose This Component

Grade and load: choose CEMA E for extra-heavy, high-tonnage and overland duty; CEMA D for heavy-duty mainstream sections. Size the roller diameter and bracket spacing to the expected impact, belt load and material flow.
Belt width: match the part to your belt (BW 24"–96"). When requesting a quote, send belt width, required trough angle or drum diameter, and installation spacing so we can confirm a drop-in fit.
Working environment: tell us whether the duty is wet, dusty, sticky, abrasive or high-drop so we can match the seal, lagging, material and surface finish.
Retrofit and mounting: provide existing bracket spacing and frame type for a direct replacement; painted or galvanized finishes are both available.

Why Source These Spare Parts From Us

Built to CEMA D/E and ISO alignment standards for interchangeability with existing frames.
Direct factory supply with no middleman markup; OEM and private-label orders accepted.
Custom dimensions, lagging, seals, shafts and finish built to your specification.
Seaworthy timber or carton export packing; shipped to 60+ countries by sea, air and express freight.
Engineer support on selection and a written quote within 48 hours.

Frequently Asked Questions

What build grade and rating is the Secondary Belt Cleaner (Tungsten Tip)?

Secondary Belt Cleaner (Tungsten Tip) is supplied at D (Heavy-Duty). It is engineered to match CEMA D/E and ISO expectations for BW 24"–96" belt duty and can be customized to your dimensions, lagging and finish.

What belt widths does the Secondary Belt Cleaner (Tungsten Tip) cover?

This component is sized for BW 24"–96". Send your exact belt width, required angle or diameter and installation spacing when requesting a quote so we can confirm a direct, drop-in fit.

How is the Secondary Belt Cleaner (Tungsten Tip) sealed against dust and water?

Protection follows sealed, labyrinth-protected construction. Labyrinth-style sealing keeps grease in and fines, moisture and wash-down out, extending service life in harsh bulk-handling conditions.

Can I order a custom Secondary Belt Cleaner (Tungsten Tip)?

Yes. Dimensions, lagging or coating, seal, shaft and finish are built to your specification; standard lead time is 15–25 working days and 30–45 days for fully custom builds.

Ordering & Customization

MOQ: trial and sample orders welcome; volume improves pricing
Lead time: 15–25 working days standard; 30–45 days for custom build
Custom: size, lagging, seal, shaft and finish built to your specification
Export packing: seaworthy timber or carton packing for long sea transit

Typically Paired With

Components commonly ordered alongside this part to complete the station:

Primary Belt Cleaner (PU Blade)V-Plow Return Cleaner Wing / Spiral Return Pulley
